CO Gukuraho Igituma







Intangamarara y'igicuruzwa

CAS-KR-Y01-F gazi yo gukuraho umuyagankuba yakozwe hakoreshejwe ivyuma vy’ubuki vy’i cordierite nk’infashanyo, ibikoresho bidasanzwe vyo gupfuka n’ivyuma vy’agaciro vyinshi Pd na Pt nk’igihimba gikora, bishobora gukoreshwa mu gukuraho neza umuyagankuba w’umuyagankuba uterwa n’ubwoko bwose bw’umuriro w’umuyagankuba. nk’uko CO iva muri gaz ya peteroli, gaz inerte, oxygène n’ibindi, navyo nyene vyoshobora gukoreshwa mu bifuru bitandukanye nk’ifuru, ahantu h’umwotsi, incinerator kugira ngo bivure CO itaturitse.

Ico gikoresho gishobora gutuma CO iri munsi ya 0.5ppm, mu bushuhe bwa degre 150~200 n’umuvuduko wo mu kirere ku (0.3~1.0)×10 .⁴ h^-1,ibirimwo umwuka w’ikirere mu gazi yasukuwe bishobora kugabanywa bikaja munsi ya 0,5 PPM kandi ubushobozi bwo gufata umwuka w’ikirere bw’ikintu gitera umuriro bushika kuri 50ml/g, ivyo bikaba bishobora gutuma umuyagankuba n’umwuka w’ikirere bihinduka umwuka w’ikirere, kandi ikinyabuzima gishobora gusubira gukoreshwa.

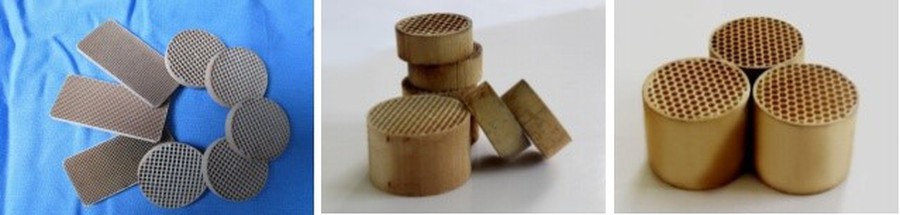

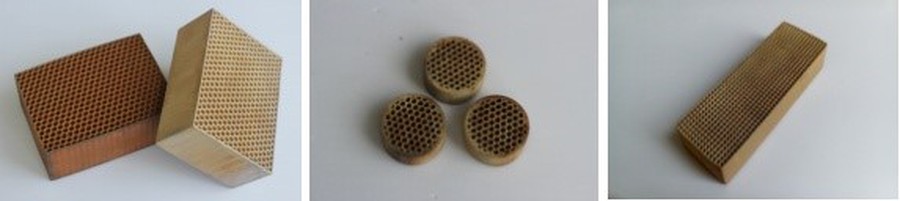

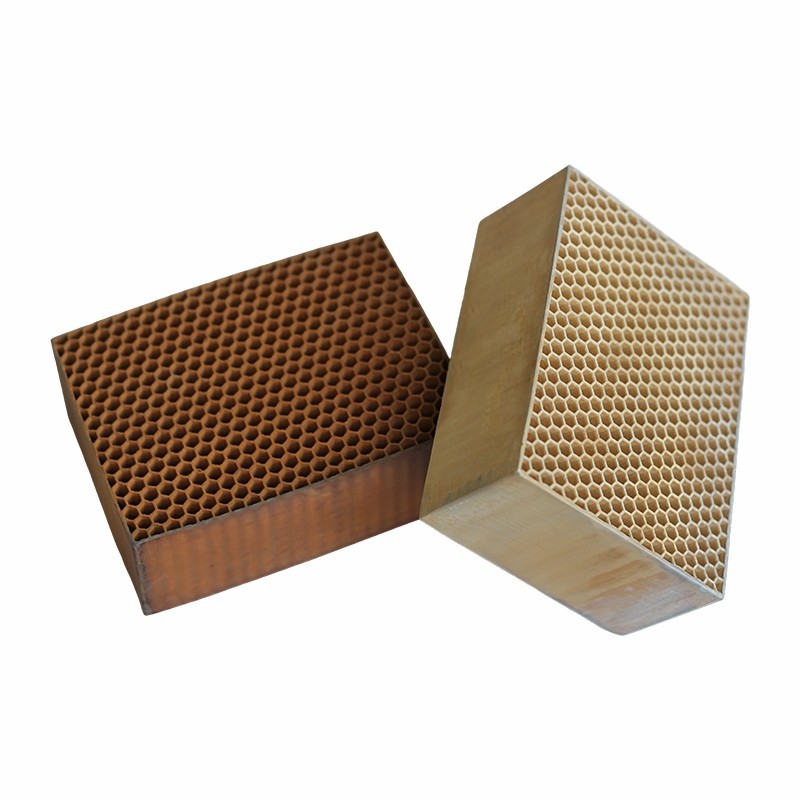

CAS{0}}KR{1}}Y01-F CO gukuraho igikoresho gitera amashusho





Imigenderanire n'Ikoranabuhanga

Oya	Ikintu co kugerageza	Ivyagezwe vy'ubuhinga
		(Igikoresho co gutwara: cordierite na alumina ihuriweko n’ibintu bitandukanye, ubunini buvana n’ingene bikora be n’ivyo usaba) ibisabwa)
1	Umuvuduko wo mu kirere	3000~100000h-1
2	Ugucana kw'intango (urumuri{0}}zimye)ubushuhe	Degre 100 -150 degre
3	Ubushuhe bwiza bwo gukoresha	180 degre -200 degre
4	Ubushuhe bwo gukoresha	250 degre -300 degre
4	Igipimo co gukuraho CO	Ikuruta canke ingana na 98﹪
5	Ubuzima bw'igikorwa	Irenga canke ingana n'imyaka 2
5	Ibirimwo CO isohoka	<5ppm
6	Ubwinshi bw'ibintu	0,68±0,05g/mL
7	Inkomezi zo gujanjagura	Irengeye canke ingana na 14 MPa
8	Igice co gupfuka	Ikuruta canke ingana na 10.0wt%
9	Igice c'ibikorwa	0.08%-0.2% (navyo bivana n'ivyo usaba)
10	Igipimo c'ukwirukanwa	＜1%
11	Isura	Kenshi ni umuhondo ukeye (yoba imvi inyuma y'ugugabanya)
12	Gupakira	Ubukonje-ikimenyamenya
13	Uburebure/uburebure bwo gutwara	Ubwoko bw’ubuki 4:1;2:1igice 1:1.

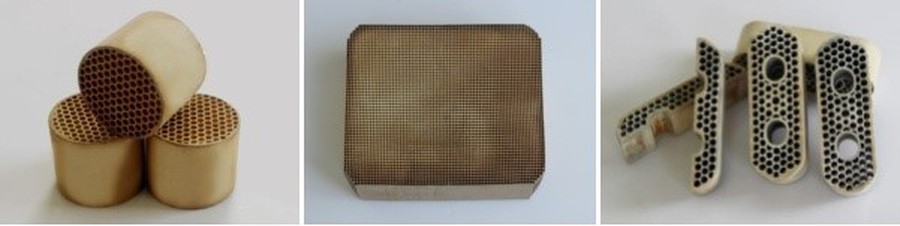

CAS -KR-Y01-F CO gukuraho igikoresho gitera umuriro

imbere yo gukoresha, CAS - KR - Y01 - F ubwoko bw'umuyagankuba wo gukuraho umuyagankuba ukeneye kuvangwa n'umuyaga mwiza canke azote, gushushwa gushika ku 180~200 celsius kugira ngo ukore ubushobozi bwawo, hanyuma ukongerako gazi izokoreshwa, ubushuhe bwiza bwo gukoresha-si0u:00. 1.5 ~ 3.0×103h-1, CO ivyiyumviro mu gazi vyari gushobora gukurwaho gushika munsi ya 0.5 PPM, Ubushuhe burengeye ubw'ubushuhe bwo guhangana n'ubushuhe ni 750 degrees (uburyo bwo gukonjesha burakenewe iyo gazi ishobora kwaka iri mu vyiyumviro vyinshi kugira ngo ntihagire ivyuma bitera umuriro bishobora gukoreshwa cane kuruta imyaka3).





CAS-KR-Y01K-F igikoresho co gusukura umwotsi w’ifuru ni ciza cane mu furi y’umukate, mu mfuruka y’umuriro n’ibindi bikoresho bikoreshwa mu guturira CO itaturitse, ingaruka zo gusukura ni nziza cane.

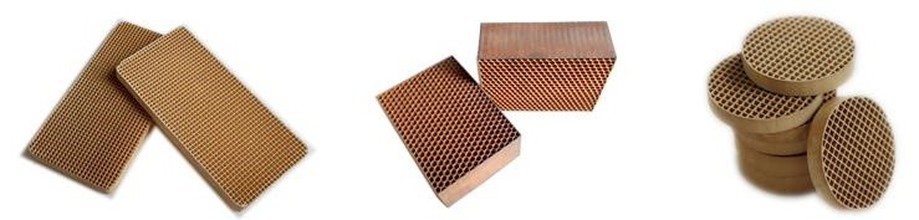

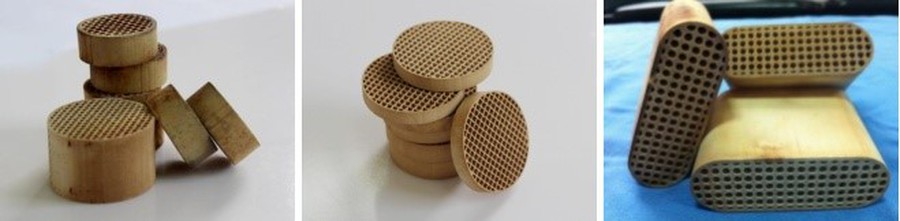

CAS-KR-Y01K-F amashusho y'ivyo gusukura gazi y'ifuru





Imigenderanire n'Ikoranabuhanga

Oya	Ikintu co kugerageza	Ivyagezwe vy'ubuhinga
		Ivyerekeye umutware w'ivyuma:Ф31.75×6.3Ф31.75×12.8 Canke iyindi cordierite mu mice itandukanye .
1	Umuvuduko wo mu kirere	3000~100000h-1
2	Ubushuhe bwo gucana bwa mbere	200 degre -250 degre
3	Ubushuhe bwiza bwo gukoresha	250 degre -400 degre
4	Ubuzima bw'igikorwa	Irenga canke ingana n'imyaka 2
5	Ibirimwo CO isohoka	mg/m3
6	Ibirimwo vy'isohoka rya CnHm	mg/m3
7	Ubwinshi bw'ibintu	0,68±0,05g/mililitiro
8	Inkomezi zo gujanjagura	Irengeye canke ingana na 12 Mpa
9	Inkomezi zo gutabuka	Irengeye canke ingana na 2 Mpa
10	Igice co gupfuka	＞10.0%
11	Igice c'ibikorwa	Irenga canke ingana na 0.1%
12	Igipimo c'ukwirukanwa	＜1%
13	Isura	Kenshi ni umuhondo n'umutuku(vyoba ari imvi inyuma y'ugugabanya)
14	Gupakira	Ubukonje-ikimenyamenya

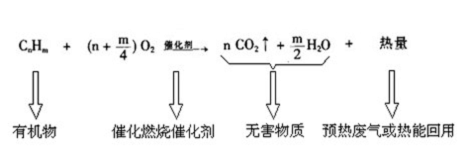

Ingingo ngenderwako y'ugusukura n'ibiranga CAS-KR-Y01K-F igikoresho co gusohora umwuka w'ifuru

Ivyo bitera ingorane CO n’ibinyabuzima bitaturitse CnHm bishobora guterwa bitagoranye mu buryo bwo guteka inyama n’ibikoresho vy’ifuru, Inyuma yo gushiramwo igikoresho co gusukura gazi y’umurizo w’ifuru, munsi y’igikorwa c’igikoresho co gutuma umuriro ugenda, mu gihe c’ugutera imbere kw’ubushuhe bw’umuriro w’umuriro mu furi, umuriro w’umurizo wo mu furi bishobora gutuma CO2 na H2O zisohoka,kugira ngo CO na CnHm bishobore gushika ku rugero rwo gusohoka, kandi bisukure umwuka uva mw'ifuru .CAS-KR-K01-F gusukura umwuka uva mw'ifuru uri mu mimerere y'ivyuma bitera umuriro ku bushuhe bwa 2~0×3,1. 10⁴h⁻¹, gazi yasukuwe, CO n’ibinyabuzima bitagira -methane bishobora kugabanywa bikaja munsi ya 4mg/m3; iyo catalyst ishobora gusubira gukoreshwa incuro nyinshi, inkomezi z’ubuhinga ni nziza kandi ubuzima bw’ibikorwa bushobora kurenga imyaka 2.



Ivyiyumviro vyo kwitwararika mu gukoresha CAS-KR-Y01K-F igikoresho co gusukura umwotsi w'ifuru

Imbere yo gukoresha, igikoresho co gusohora umwuka w’ifuru gikeneye gushushwa gushika ku 200 ~ 250 celsius kugira ngo gikore neza, hanyuma ukongerako gazi y’ifuru izovugwa, ubushuhe bwiza bwo gukoresha: burenze 300 celsius,mu gihe c’ugusubiranamo kw’umuriro wo muri 1.5 ~ 3.0×103h the gaz in{8}103 h kugeza munsi ya 0,5 PPM, kandi ivyiyumviro vy’ibinyabuzima bitagira metane bishobora kugabanywa bikaja munsi ya 1ppm; ubushuhe burengeye ubundi bwo guhangana n’ubushuhe ni degre 750 (uburyo bwo gukonjesha burakenewe iyo gazi ishobora kwaka iri mu bwinshi kugira ngo ntihagire ikintu gitera





Nk’uko umushinge w’umusumari w’umubu, Cas-KR-Y01M-F ubwoko bw’umusumari wica imibu utegurwa n’ishirahamwe ryacu ryigenga,ni ry’ibikoresho vy’ubuhinga bwa none, bifise igikorwa co guhindura umuyagankuba w’umuyagankuba w’umuntu kugira ngo uhindure umuyagankuba w’umuyagankuba kugira ngo uhindure umuyagankuba w’umuyagankuba w’umuntu kugira ngo uhindure umuyagankuba w’umuyagankuba w’umuyagankuba. gukwegera imibu mu mutego w’imibu, muri ico gihe nyene, ubushuhe buva mu gutera ivyatsi bushobora gukoreshwa mu gutanga umuyagankuba w’imitego y’imibu, igikoresho nta -ubumara gifise kandi ntaco gitera, kiri mu bikoresho bibungabunga ibidukikije, gikoreshwa cane cane mu deluxe deluxe.

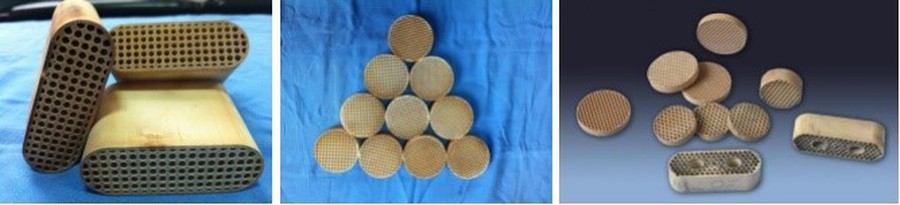

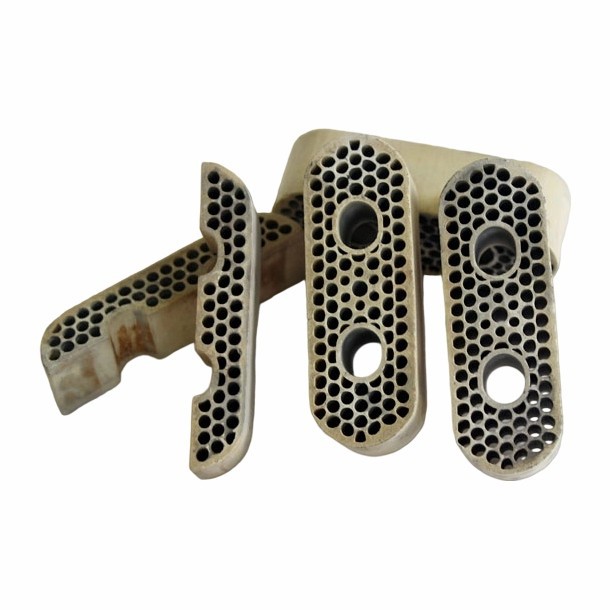

CAS{0}}KR{1}}Y01M-F amashusho y'umusumari w'umubu





Imigenderanire n'Ikoranabuhanga

OYA.	Ikintu co kugerageza	Ivyagezwe vy'ubuhinga
		Ivyerekeye umuduga: Ф40,89×6,35/Ф40,89×9,652/Ф40,89×25,4 Canke ibindi bimenyetso vy'umubiri
1	Igihe c'iyerekanwa ry'umuco w'icatsi kibisi	<900s
2	Ugusohoka kwa CO	<0.5mg/m3
3	Ubuzima bw'igikorwa	Irenga canke ingana n'imyaka 2
4	Ubwinshi bw'ibintu	0,66±0,05g/mililitiro
5	Inkomezi zo gufatanya	Ikuruta canke ingana na 12MPa
6	Ibisobanuro vy'uwutwara	Dushingiye ku bisabwa n'abaguzi
7	Umuzigo wo gupfuka	>8%
8	Igipimo co kugwa	<1%
9	Isura	Inzobe y'igitutu
10	Gupakira	Ikidodo c'ubukonje



Ingingo ngenderwako y'ugusukura n'ibiranga CAS-KR-Y01M-F umubu w'umuyagankuba

Imibu ironka abantu kubera umwuka w’ikirere abantu basohora, iyo yumvise umugezi wa gazi ya carbone izoca iguruka ija kuri iyo gazi ubwo nyene, umusumari w’imibu ni imashini ifata imibu ikoresheje gazi ya peteroli ihindutse amazi igenda kandi yigana guhema kw’umuntu kugira ngo ivyare umwuka w’ikirere ku rugero runaka; Muri ivyo, igice nyamukuru co kwigana ukuntu umuntu ahumeka kugira ngo akoreshe umwuka w’ikirere ku rugero runaka no gukuraho umwuka w’ikirere harimwo ikintu kidasanzwe cica imibu citwa Cas-KR-Y01M-F .



Ibiranga CAS{0}}KR-Y01M{3}}F umusumari w'umubu udasanzwe

CAS-KR-Y01M-F ubwoko bw'imibu yica umuyagankuba ni uw'ibikoresho vy'ubuhinga bwa none,Ifise igikorwa co guhindura umuyagankuba w'amazi mu kwigana imibu y'abantu ku gihe, ubushuhe buva mu gutera imibu bushobora gukoreshwa mu gutanga umuyagankuba w’imitego y’imibu, igikoresho ntikigira ubumara kandi ntaco gitera, ni ic’ibikoresho bibungabunga ibidukikije, gikoreshwa cane cane mu kwica imibu y’agaciro.gishobora kandi gukoreshwa mu furi, mu mfuruka y’umuriro no mu nganda.



Iciyumviro co gukoresha CAS -KR-Y01M-F igikoresho co gutuma umubu utera

Igipande c’ibintu bitagira ubuzima gishobora guhangana n’ubushuhe bwinshi gikoreshwa mu gihe co gushiramwo, iyo kitakoreshejwe igihe kirekire, gikwiye gukurwaho maze kigakingirwa n’ubukonje-ikimenyamenya, ukunanirwa kw’igikoresho gitera umuriro bitewe n’ubukonje gushobora gusubira gukoreshwa mu kwumisha degre 110 canke kwotsa degre 500.





CAS-KR-T02-K ubwoko CO ubushuhe bwo mu cumba gukuraho catalyst yakozwe hakoreshejwe imipira y’alumina ikora nk’infashanyo, hakoreshejwe isi yihariye idasanzwe nk’ibikoresho vy’inyongera, n’ivyuma vyinshi vy’agaciro Pd na Pt nk’igice gikora, Bishobora gukoreshwa mu gukuraho enxiron se the monovial ubushuhe mu icumba co gutabara co munsi y’ubutaka/icumba c’ubuhungiro, Ishobora kandi gukoreshwa mu nzu yo munsi y’ubutaka, mu gipfukisho c’umuriro, mu laser ya CO2, mu gukaraba gazi n’ibindi bihe aho umubare mutoyi wa CO ukeneye gukurwaho, mu gihe c’ubushuhe bwo mu cumba ( Umuvuduko munini canke ungana na degre 15 ), ubukonje bwa gazi burengeye 9 . 0.5×104h−1, CO yose ishobora guhindurwa mu minota 20, kandi CO isigaye iri munsi canke ingana na 23ppm, Igihe co gukoresha inzinguzingu imwe ntigishika ku masaha 24, inyuma y’ugusubira gusubirana kworoshe bishobora gusubira gukoreshwa inzinguzingu zirenga 3.

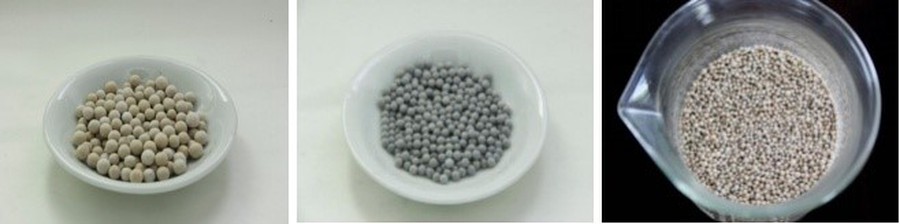

CAS-KR-T02-K ubwoko bwa CO ubushuhe bwo mu cumba bwo gukuraho amafoto
